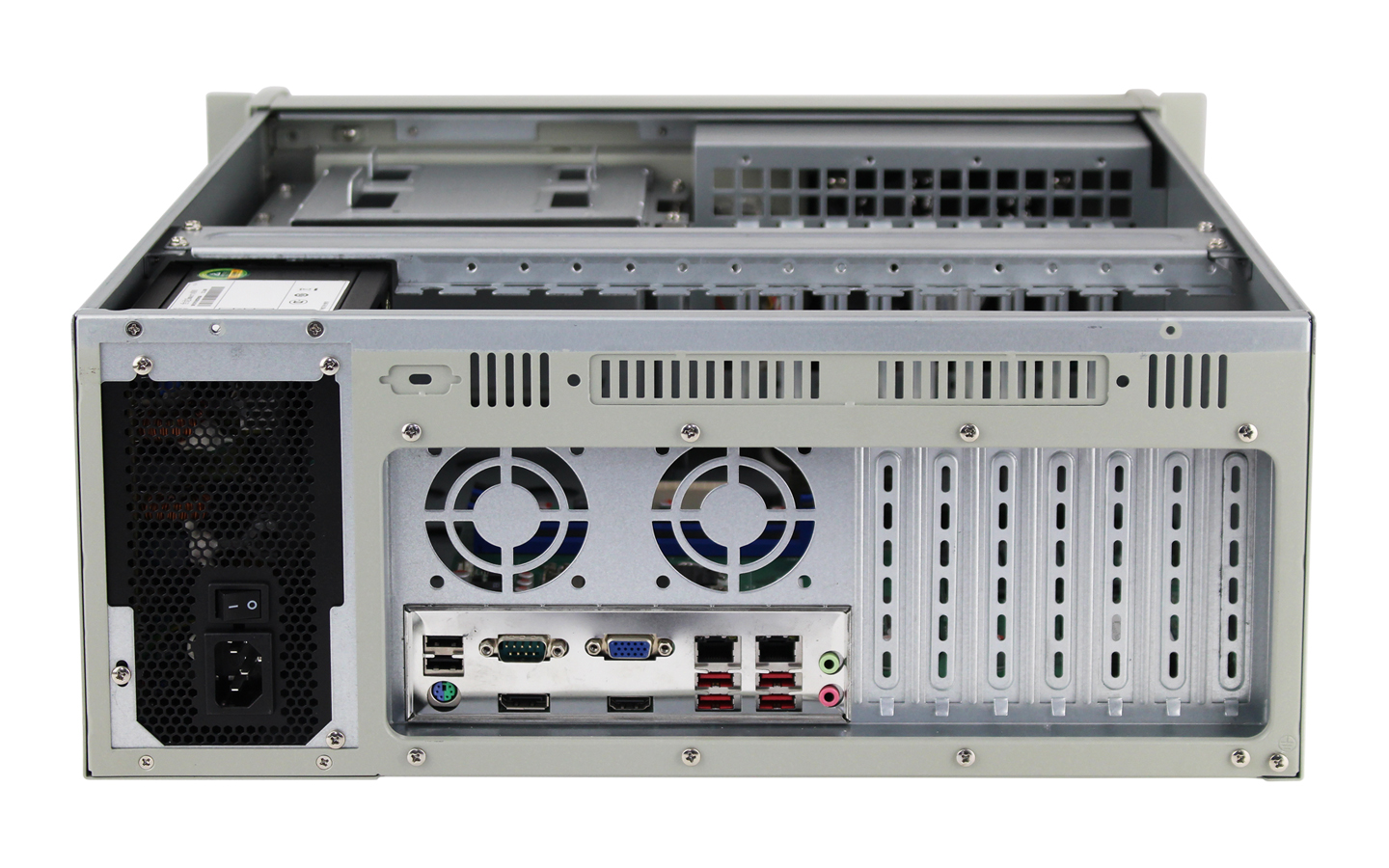

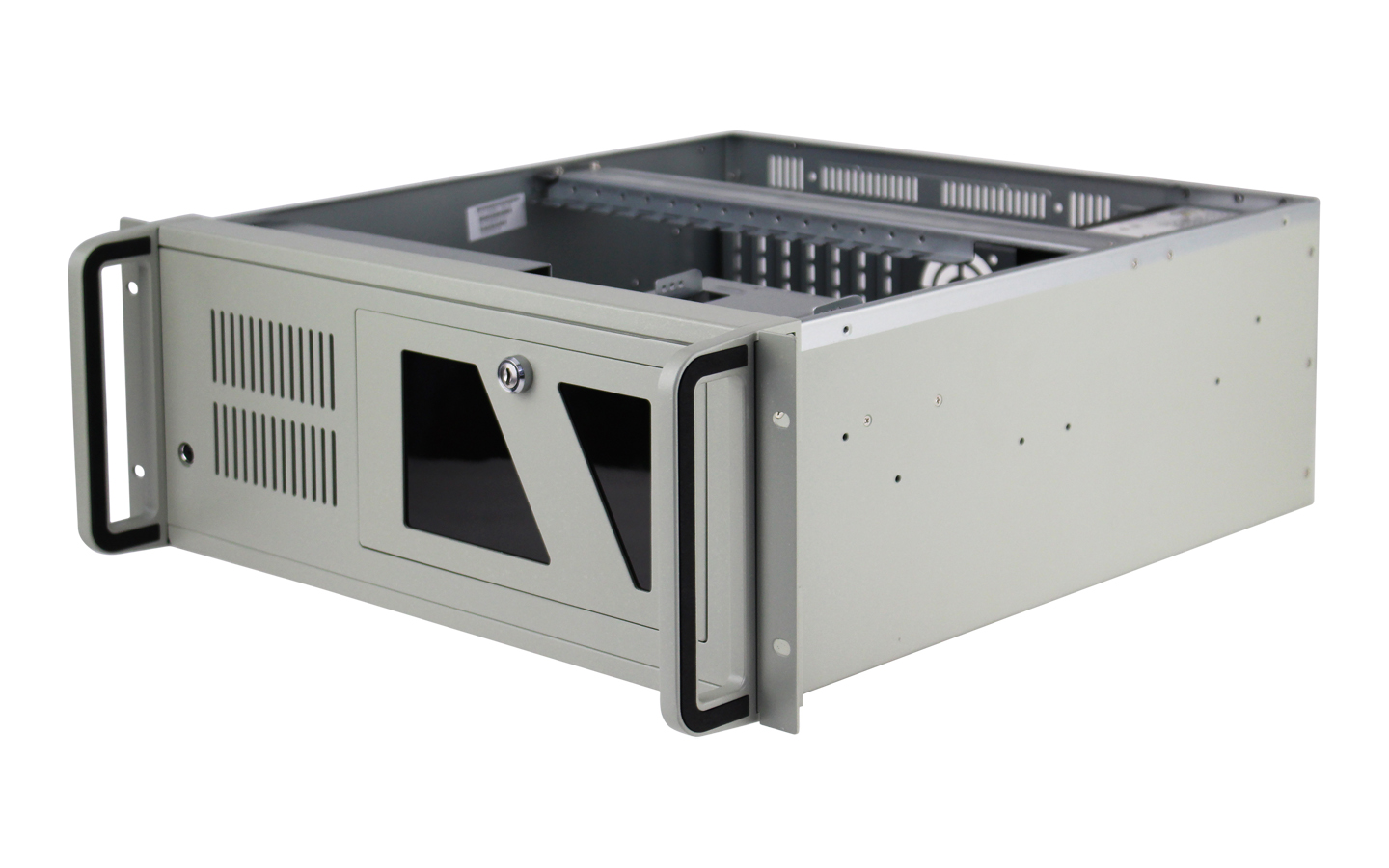

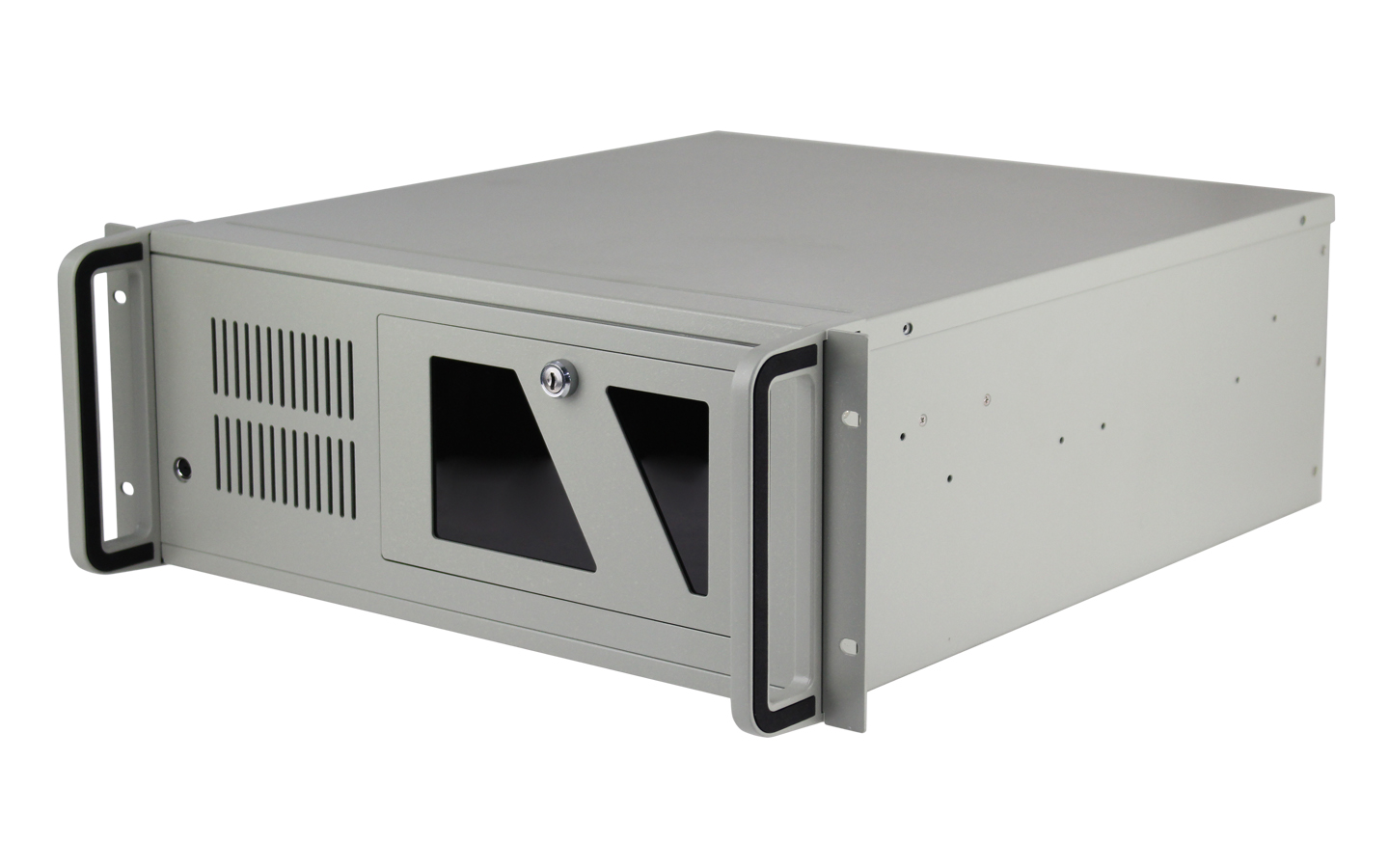

Product model:IPC610F-Seven slots and fourteen slots Gery

Cloud storage, cloud computing, big data, security monitoring, etc.

Components	Specification
Dimensions(WxDxH)	427mm x 450mm x 177mm, standard 19" rackmount chassis.
Materials	Quality fine 1.2mm SGCC steel.
Color	Grey.
Drive bay	2x 3.5" HDD drive bays, 1 x 3.5" FDD/HDD bay, 1*2.5" HDD bay, 2 x 5.25" CD-ROM bays.
Cooling Fan	1 x 12025 fan on front.
PSU form factor	4U Stanard ATX psu.
M/B form factor	Support MAX ATX 12" x 9.6" motherboard.
Expansion space	7/14 vertically mounted full-height PCI/PCIe expansion slots
Connector	Two front accessible USB2.0 ports.
System Control	POWER LED1, HDD LED1, KB-LK LED, RESET SW1, POWER SW1, KB-LK SW*1.
Application	Industrial control, Intelligent transportation, Mechanical automation, The Internet of Things, Security monitoring, and other fields.

Product Features:
1.Conformed with EMC design standard to prevent from electromagnetic interference.
*2.Support motherboard size up to ATX 12" x 9.6", and 2x 3.5" HDD drive bays, 1 x 3.5" FDD/HDD bay, 12.5" HDD bay, 2 x 5.25" CD-ROM bays, Standard PS2 power supply or redundant power supply.**
3.The chassis has good ventilation system 1 x 120mm fan on front to make sure the system work steadily.
