Product model:8157-11-04Tower AI server chassis

Product category:Tower AI reasoning chassis

Product Introduction:

It features an excellent heat dissipation design. The chassis supports radiator

Application field:

In the fields of cloud computing, AI (Artificial Intelligence), big data, deep learning, etc.

Overview
Technical Parameter
Dimension
Data download

Overview

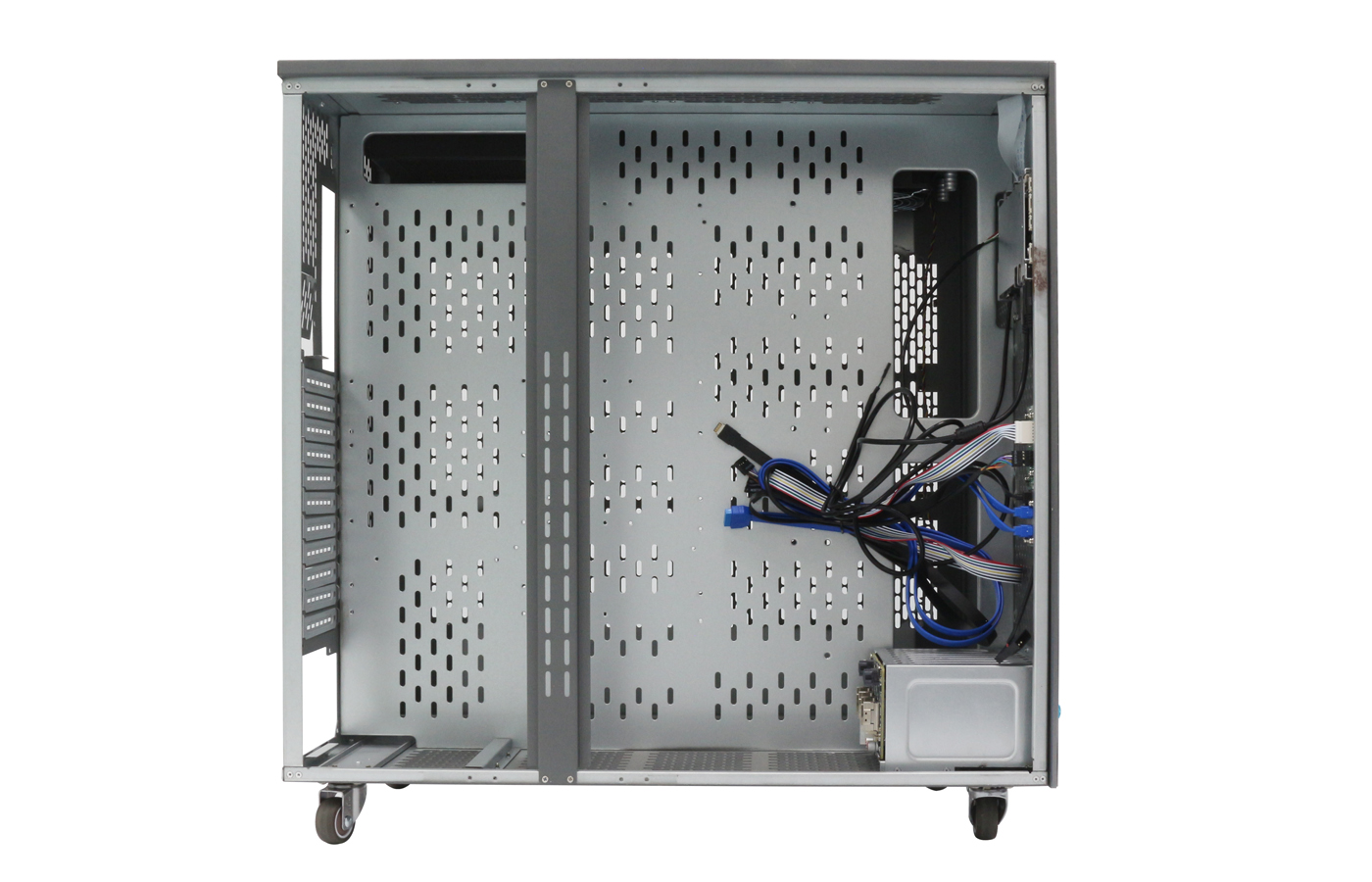

It features an excellent heat dissipation design. The chassis supports radiator cooling. There are 8 hot - swappable 2.5 - inch hard drive bays at the front, a mounting position for standard EATX motherboards and smaller ones, and it can accommodate 4 GPU slots. There are 14 expansion slots in total. At the top, there are 2 mounting positions for 480*38 water - cooling radiators, and on the right side, there are 3 such mounting positions. On the front - left side, there are 2 mounting positions for 12028 fans. There are also 2 mounting positions for standard 4U ATX power supplies.

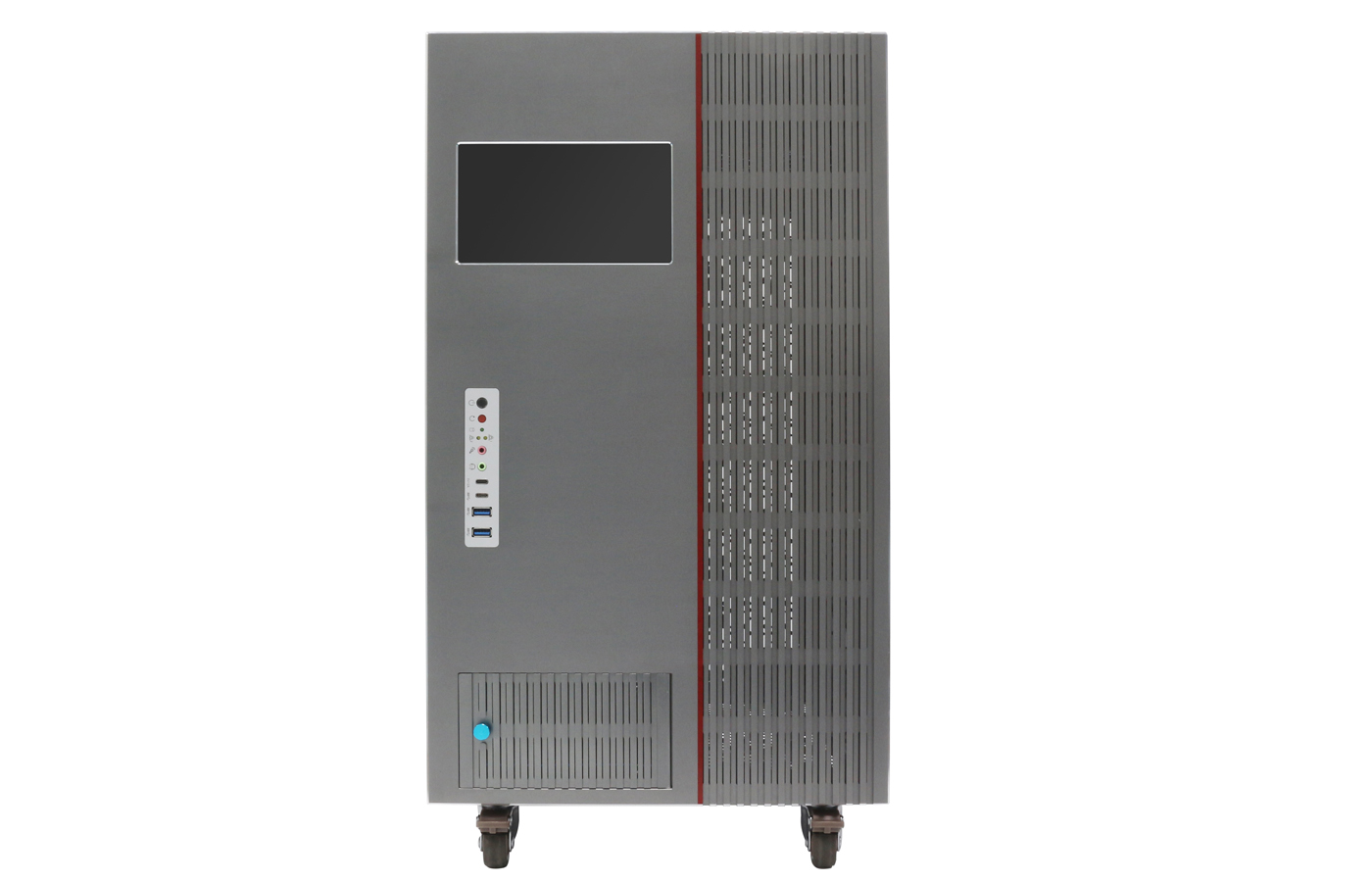

It is equipped with a 7 - inch screen that can display the CPU/GPU temperature, upload and download speeds, and hard drive temperature.

It is widely used in fields such as cloud computing, AI, big data, and deep learning.

Technical Parameter

Item	spec
Dimensions（mm）	615(D) × 340(W) × 570(H)
Material	Medium steel, environmental protection, anti-fingerprint 1.0mm SGCC
Fan	The chassis can support 5 mounting positions for 480*38 water-cooling radiators, with 2 at the top, 3 on the right side, and 2 12028 fans on the front-left side.
M/B Supports	It supports standard EATX motherboards and those of smaller sizes. It is compatible with Supermicro and Gigabyte motherboards (with a size of 15.1*13.2 inches and 11 slots).
Hard disk backplane	One hard disk backplane with 8 bays for 2.5-inch hard disks.
GPU	It can support 4 GPU cards.
I/O	11 full-height PCI/PCIE expansion slots (vertically installed)
External port	2 * USB 3.0，2TYPE C，2AUDIO
Field of use	Reset SW1，Power SWwith lights1，HDD LED1 , LAN LED2
Power Supply	Two mounting positions for standard 4U ATX power supplies
Display panel	A 7-inch display screen can show the CPU and GPU temperatures, upload and download speeds, as well as the hard disk temperature and upload and download speeds.
Applicable fields	Fields such as cloud computing, artificial intelligence, big data, and deep learning”.
