IPC4186 reinforced wall-mounted industrial control chassis is produced with 1.0mm SGCC full mold. The chassis supports standard Micro-ATX motherboards, supports 4 full-height PCI/PCIE expansion slots, can be installed with standard ATX power supplies, and supports 1 3.5-inch mechanical hard drive and 4 A 2.5-inch SSD and a 2.5-inch/3.5-inch hard drive bay. The chassis supports GPUs with a length of ≤355mm. The structure adopts a reinforced design and is very reliable. It is suitable for machine vision, industrial control, intelligent transportation, mechanical automation, AI, Internet of Things, etc. field.
| Component | Specifications |

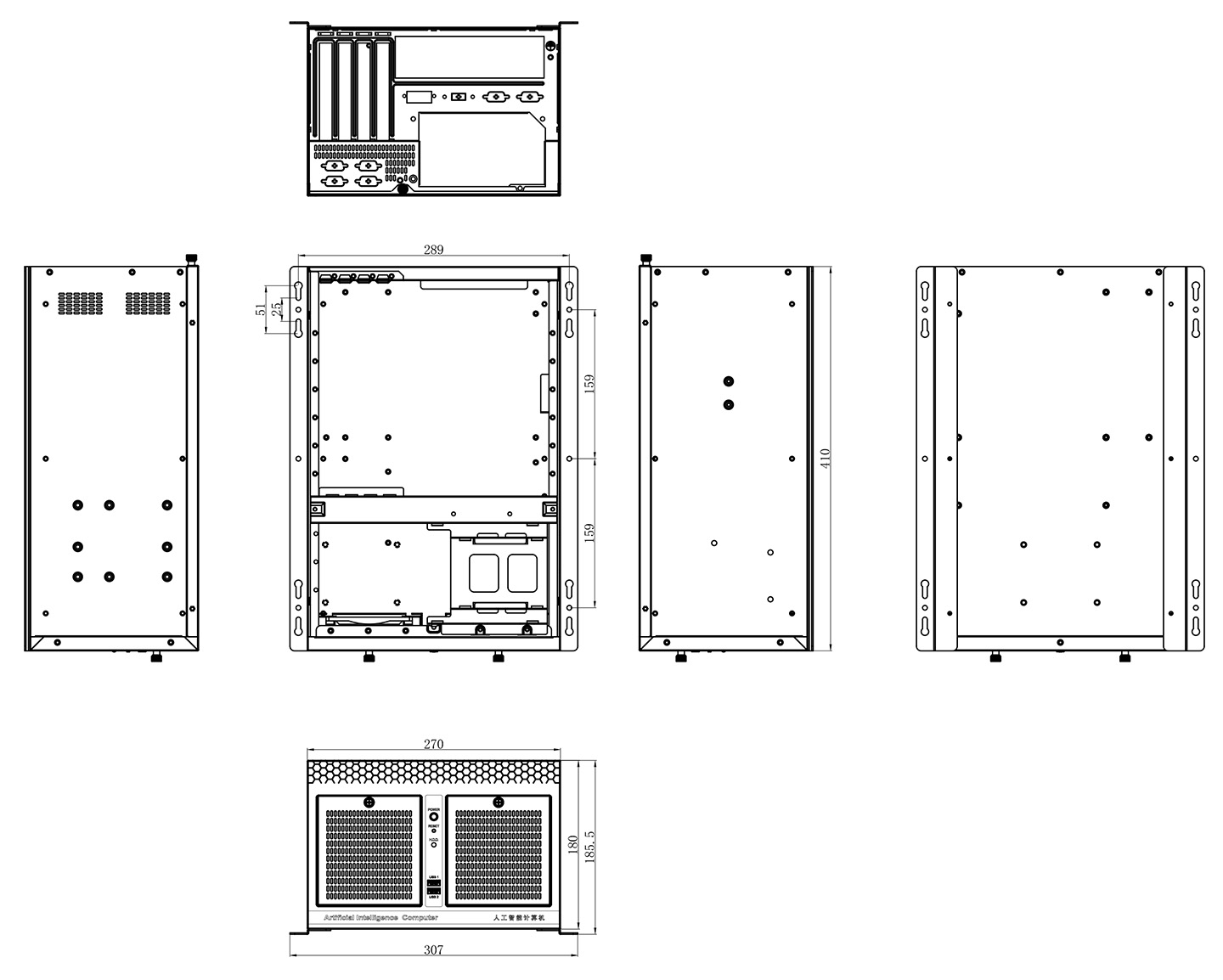

| Dimensions (mm) | 410(L)*270(W)*180(H) |
| Material | Magang (environmentally friendly, fingerprint resistant 1.0mm SGCC) |
| Surface treatment | The outer surface is sprayed, but the internal parts are not sprayed |

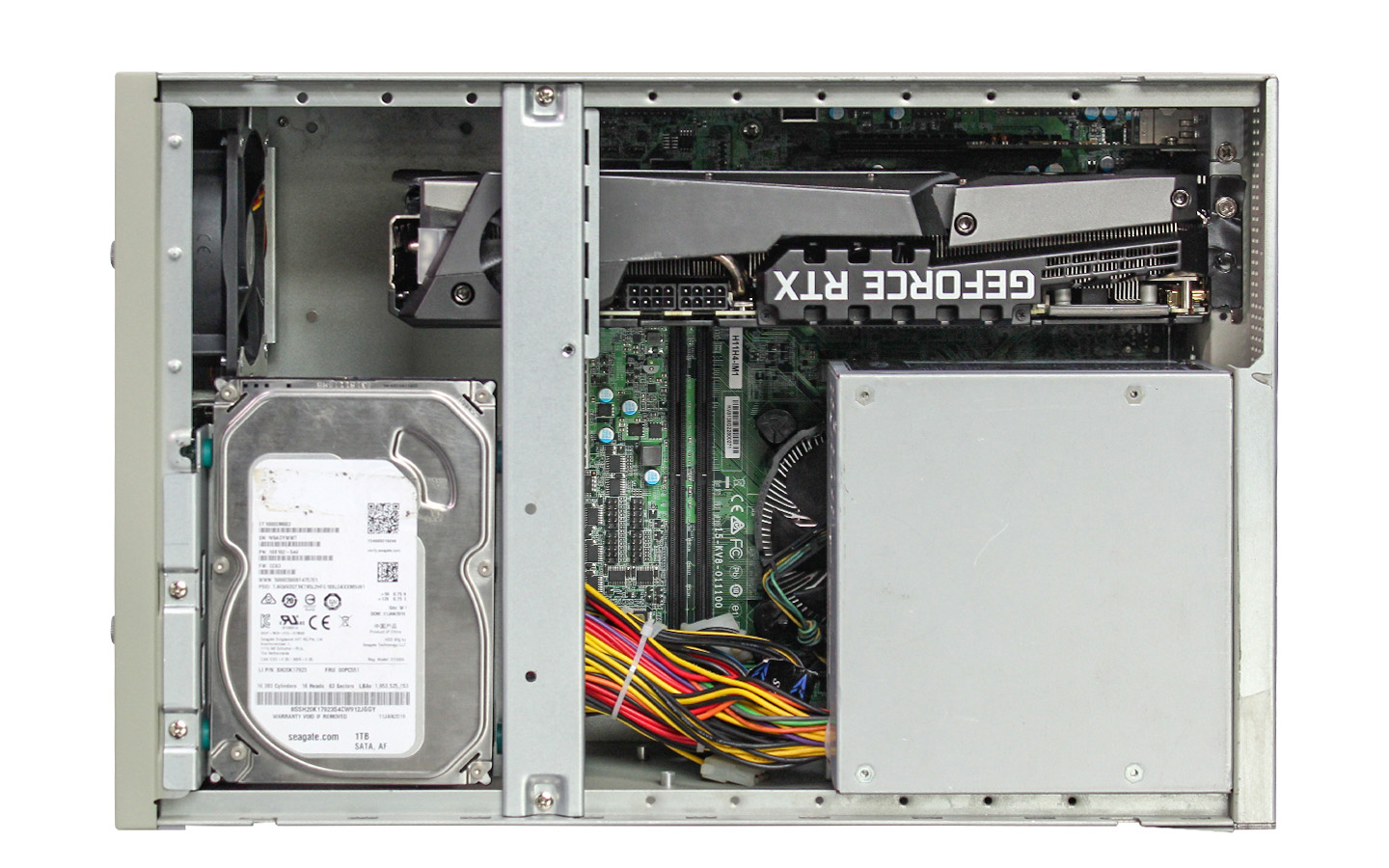

| Drivers bay | 1* 3.5" hard drive slot, 4 2.5" hard drive slots, 1* 2.5"/3.5" hard drive slot |
| Cooling Fan | 2* 9cm fan positions, 1* 9025B fan is standard |
| Motherboard | standard motherboards with dimensions of 9.6"×9.6" and below |
| Expansion | 4 full-height PCI/PCIE expansion slots, |

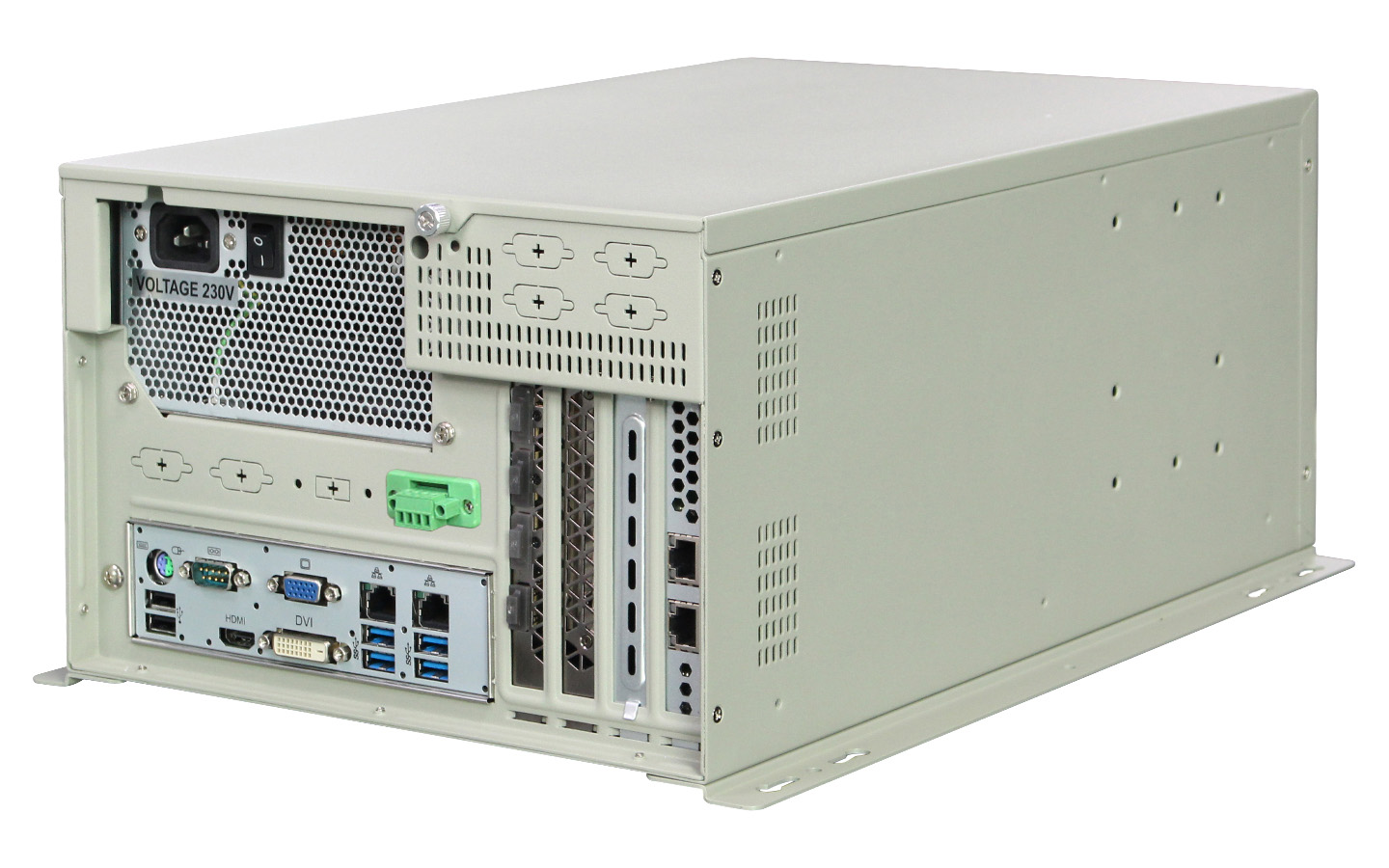

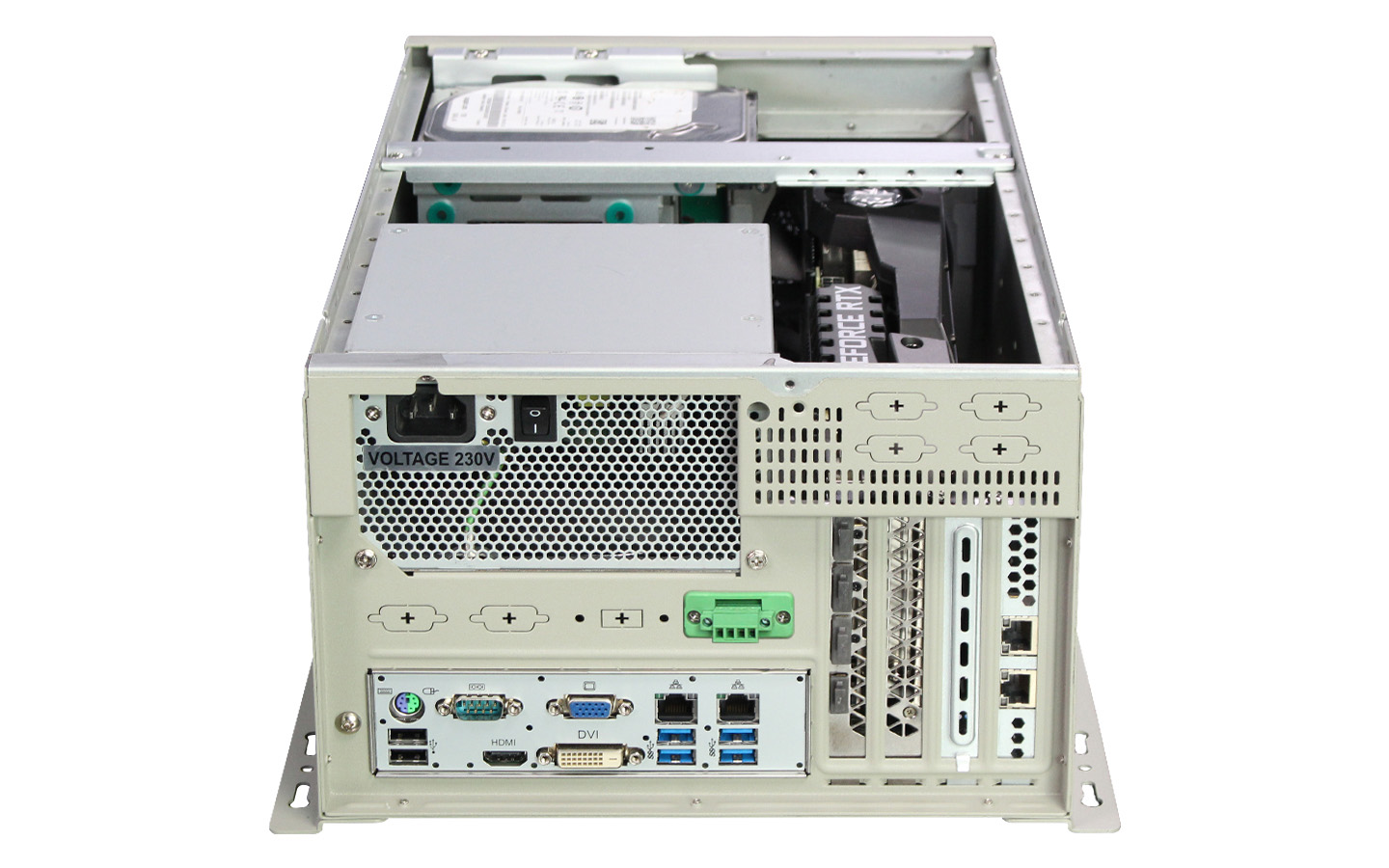

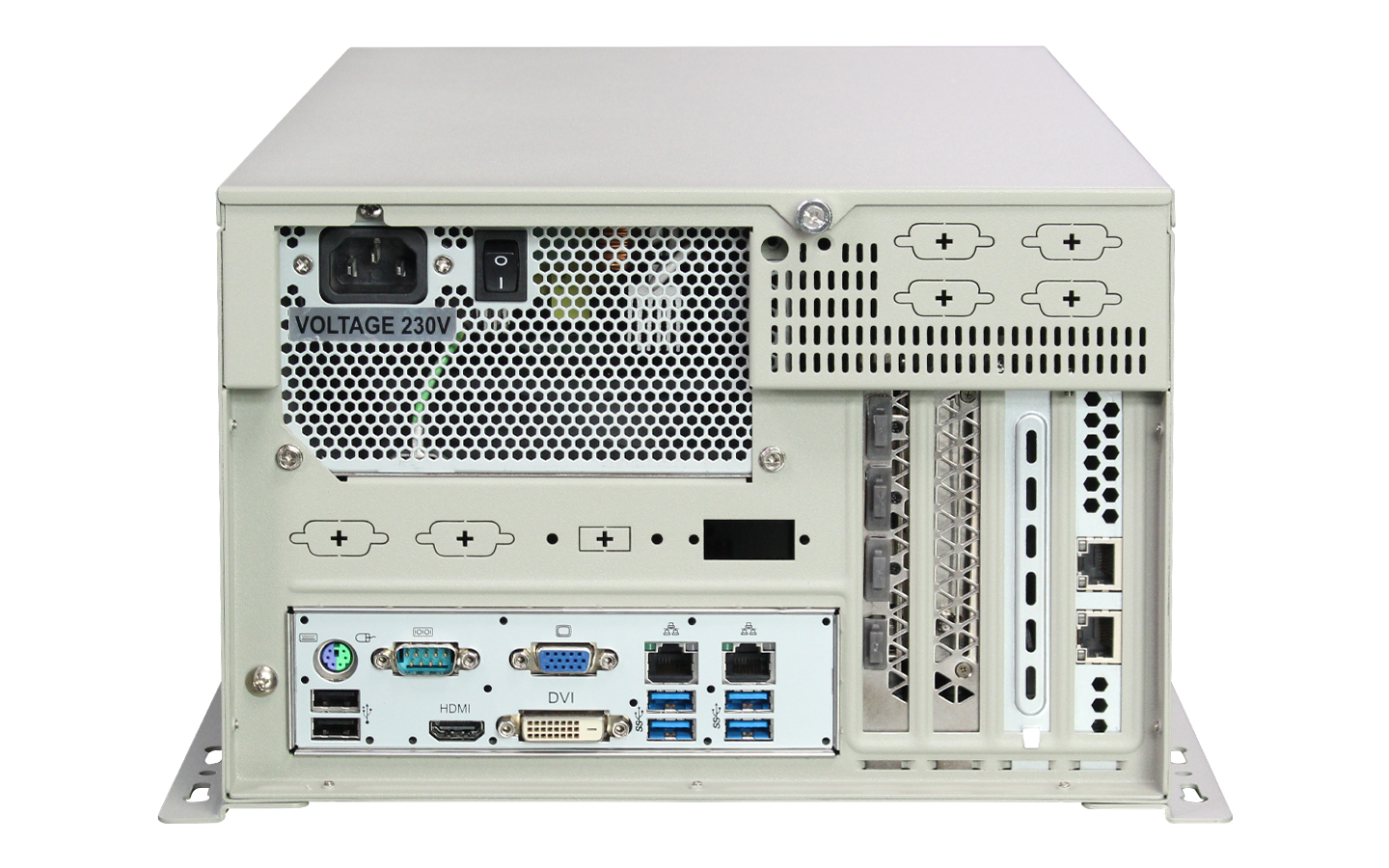

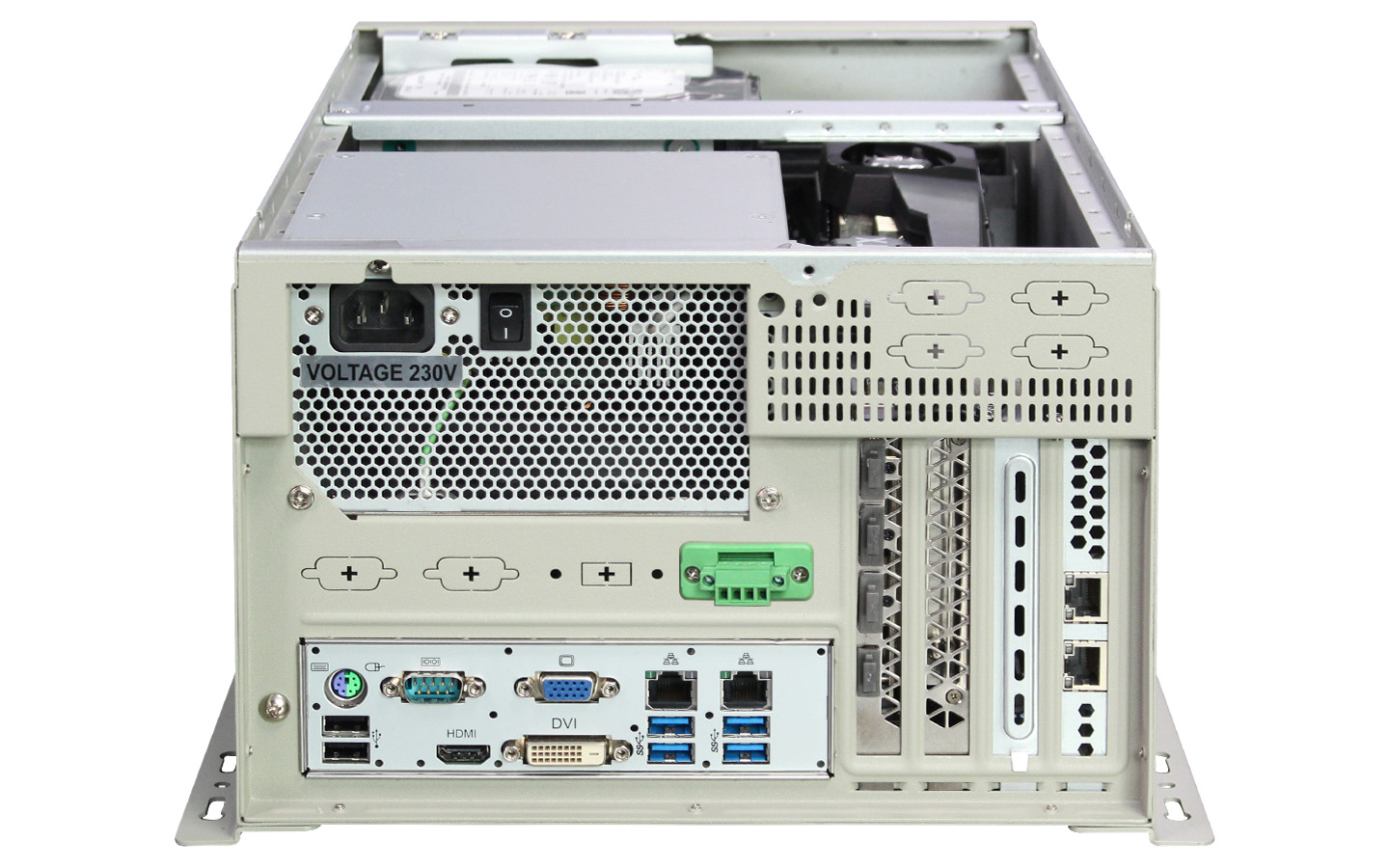

| External interface | front 2*USB2.0, optional USB3.0, rear window 1*USB reserved interface, 6*COM reserved interface, 1* 4PIN Phoenix terminal reserved interface |
| PSU form factor | supply Standard ATX power supply |
| CPU cooler height | Height ≤70mm (dimension from top to bottom of radiator) |

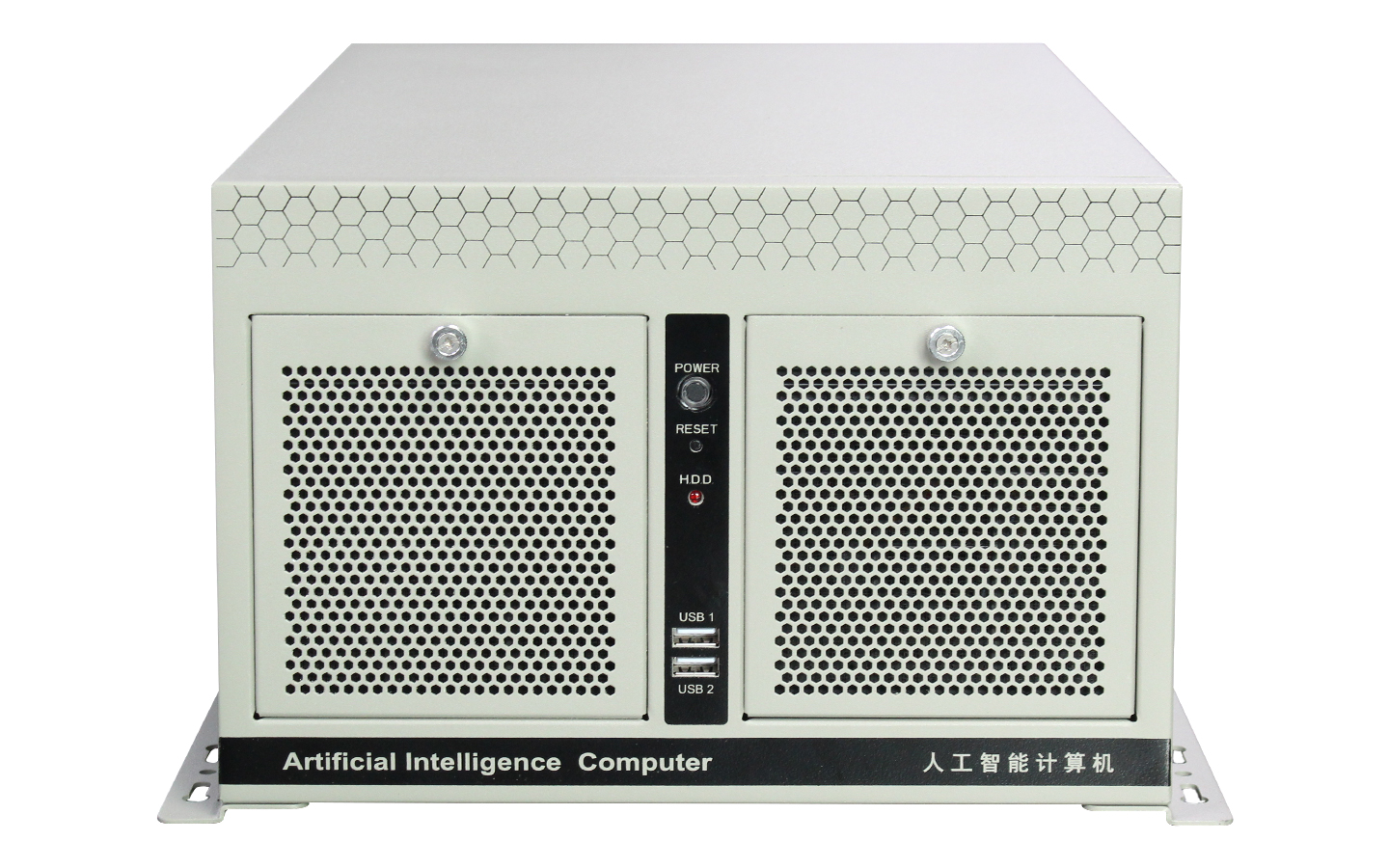

| System control | POWER LED*1，HDD LED*1，RESET SW*1，POWER SW*1 |
| Application | Machine vision, industrial control, intelligent transportation, mechanical automation, AI, Internet of Things, etc. |
