配置名称规格参数数量备注主板7卡直插式主板，Intel B150芯片组，2*USB2.0，1*Gigabit LAN，1*Power LED，1*HDD LED，1*Power SW，8*DC 12V Input，12*DC 12V Output1CPUIntel Celeron G3930，双核2.9GHz，1选配Skylake-s I7/I5/I3/Pentium/Celeron LGA115
Cloud storage, cloud computing, big data, security monitoring, LOT, etc.
| Components | Specification |
| Mainboard | 7-card in-line motherboard, Intel B150 chipset, 2*USB2.0, 1*Gigabit LAN, 1*Power LED, 1*HDD LED, 1*Power SW, 8*DC 12V Input，12*DC 12V Output. |
| CPU | Intel Celeron G3930, dual core 2.9ghz, optional skylake I7 / I5 / I3 / Pentium / Celeron LGA1151 processor. |
| RAM | DDR4 4G notebook memory, optional DDR4 8G/16G notebook memory. |
| SSD | 60 / 64G msata (optional 128G msata). |
| GPU card | 7 * NVIDIA P106 / p104 AMD rx570 / rx580 (optional), 8 * P106 calculation power of the whole machine 168Mh/s ± 5%, 8 * P104 calculation power of the whole machine 252Mh/s ± 5%, 8 * RX570 calculation power of the whole machine 196Mh/s ± 5%, 8 * RX580 calculation power of the whole machine 206Mh/s ± 5%, Support GPU cards with thickness ≤ 49mm and length ≤ 310mm. |
| Power Supply | 1U 1600W power supply, optional 1U 1800/2200W. |
| Video card power supply line | 7 * 6P to (6 + 2)P, 23cm, 18AWG. |
| Size(mm) | Product size: 437(W)*382(D)*165(H), Package size: 600(L)*500(W)*300(H). |
| Cooling Fans | 3 x 120mm ball bearing fans on front, 12V-3.9A optional 12V-3A. |
| Working temperature | -10℃-35℃. |
| Weight(KG) | N.W 12KG±10%, G.W 14KG±10%. |
| Product Features: | |
1.Conformed with EMC design standard to prevent from electromagnetic interference. | |
| 2.7-card in-line motherboard, and Intel Celeron G3930, dual core 2.9ghz, optional skylake I7 / I5 / I3 / Pentium / Celeron LGA1151 processor, 60 / 64G msata (optional 128G msata). | |

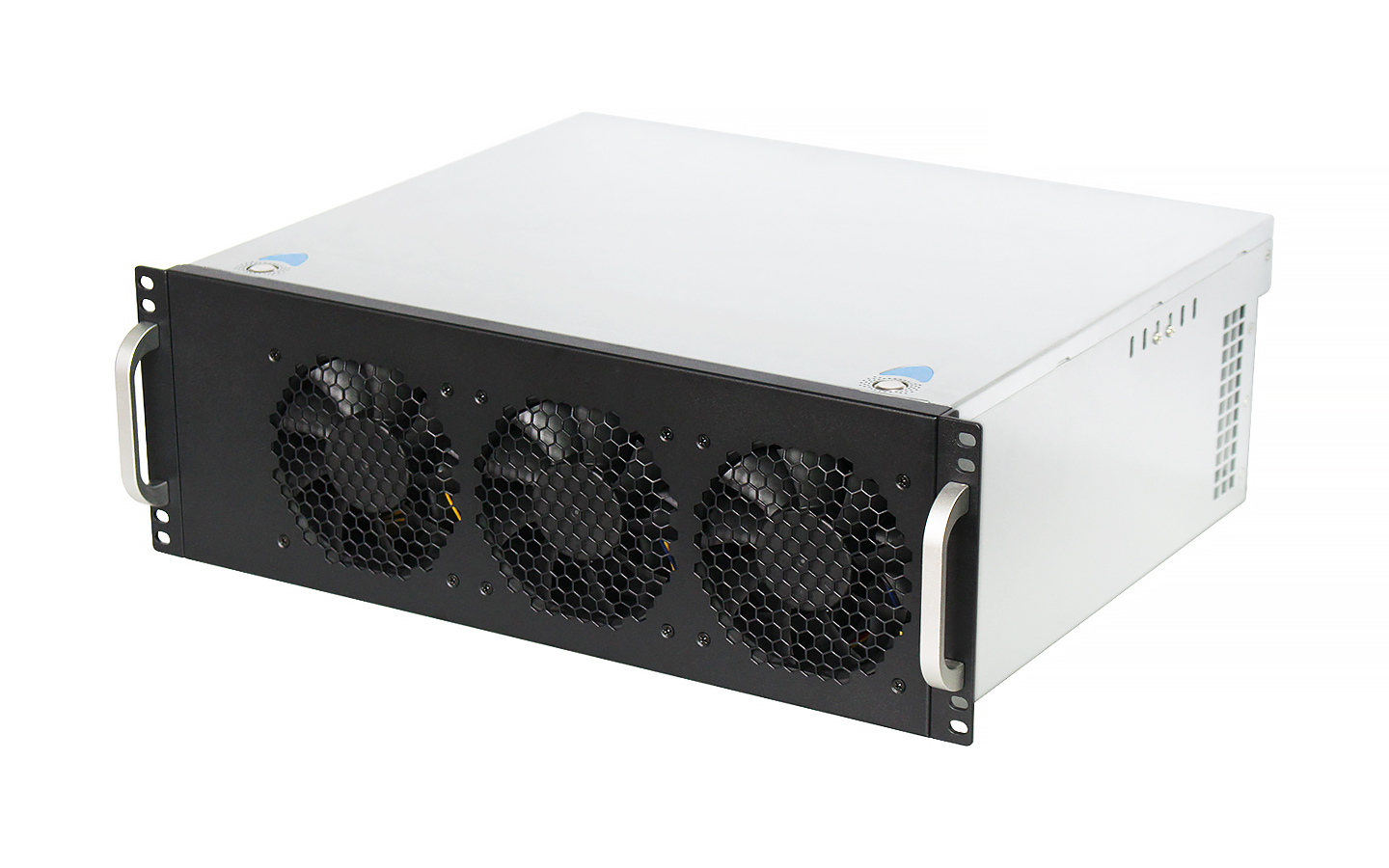

| 3.The chassis has good ventilation system 3 x 120mm ball bearing fans on front to make sure the system work steadily. | |
